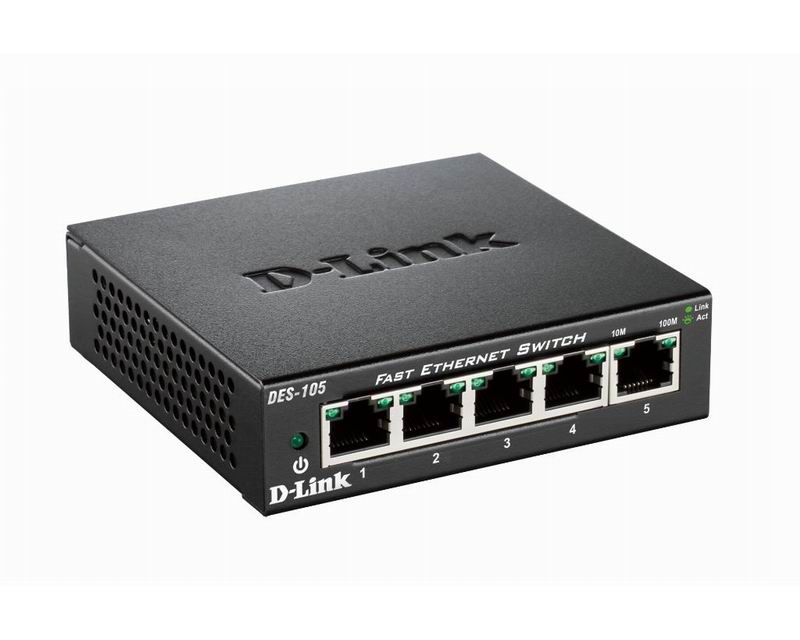

D-Link DES-105 Switch

Standards

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
IEEE 802.3az Energy Efficient Ethernet (EEE)

Layer2 Features

MAC address table: 2K
Auto MDI/MDIX crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
Jumbo Frames: 2047 Bytes

Switching fabric

1.0 Gbps

Data Transfer Rates

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

RAM Buffer

384 KB

LED Indicators

Per port: Link/Activity
Per device: Power

Quality of Service (QoS)

Supports 802.1p QoS
2 Queues, Strict Mode

Green features

Energy Efficient Ethernet (EEE) standard
RoHS compliant

Power

External 5 V/1 A Level ?V? Power Adapter

Power Consumption (DC input)

Standby: 0.35 W.
Maximum: 1.9 W.

MTBF

495,709 hours

Temperature

Operating: 0 to 50 °C
Storage: -10 to 70 °C

Humidity

Operating: 10% to 90% RH non-condensing
Storage: 5% to 90% RH non-condensing

Dimensions (W x D x H)

100 x 98 x 28 mm

Certifications

FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
