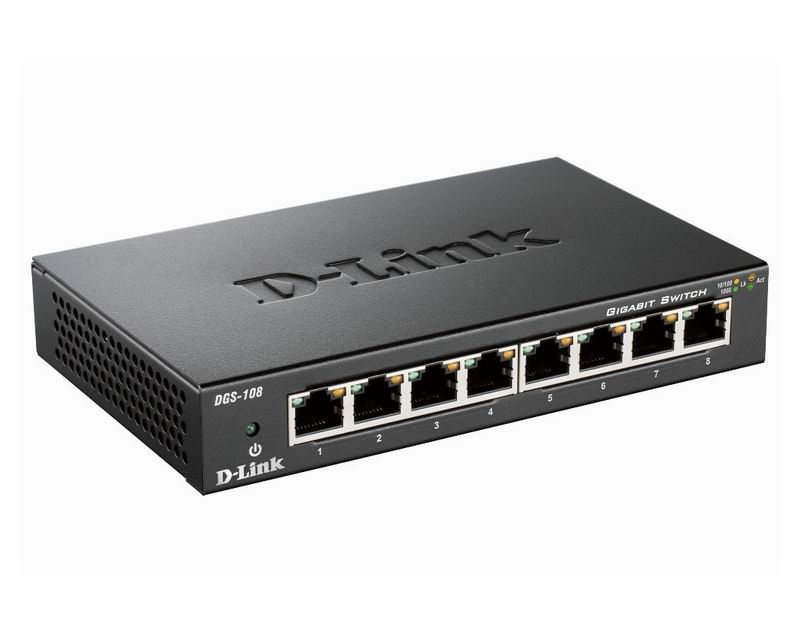

D-Link DGS-108 Switch

Standards

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
IEEE 802.3az Energy Efficient Ethernet (EEE)

Layer2 Features

MAC address table: 8K
Auto MDI/MDIX crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
Full-duplex only for Gigabit Ethernet speed
Jumbo Frames: 9000 Bytes

Switching fabric

16 Gbps

Data Transfer Rates

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

128 KB

LED Indicators

Per port: Link/Activity/Speed
Per device: Power

Quality of Service (QoS)

Supports 802.1p QoS
4 Queues, Strict Mode

Green features

Energy Efficient Ethernet (EEE) standard
D-Link Green: power saving by cable length detection
RoHS compliant

Power

External 5 V/1 A Level ?V? Power Adapter

Power Consumption (DC input)

Standby: 0.55 watts
Maximum 2.8 watts

MTBF

2,053,751 hours

Temperature

Operating: 0 to 50 °C
Storage: -10 to 70 °C

Humidity

Operating: 10% to 90% RH non-condensing
Storage: 5% to 90% RH non-condensing

Dimensions (W x D x H)

162 x 102 x 28 mm

Certifications

FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
